PARENT MODEL NUMBER

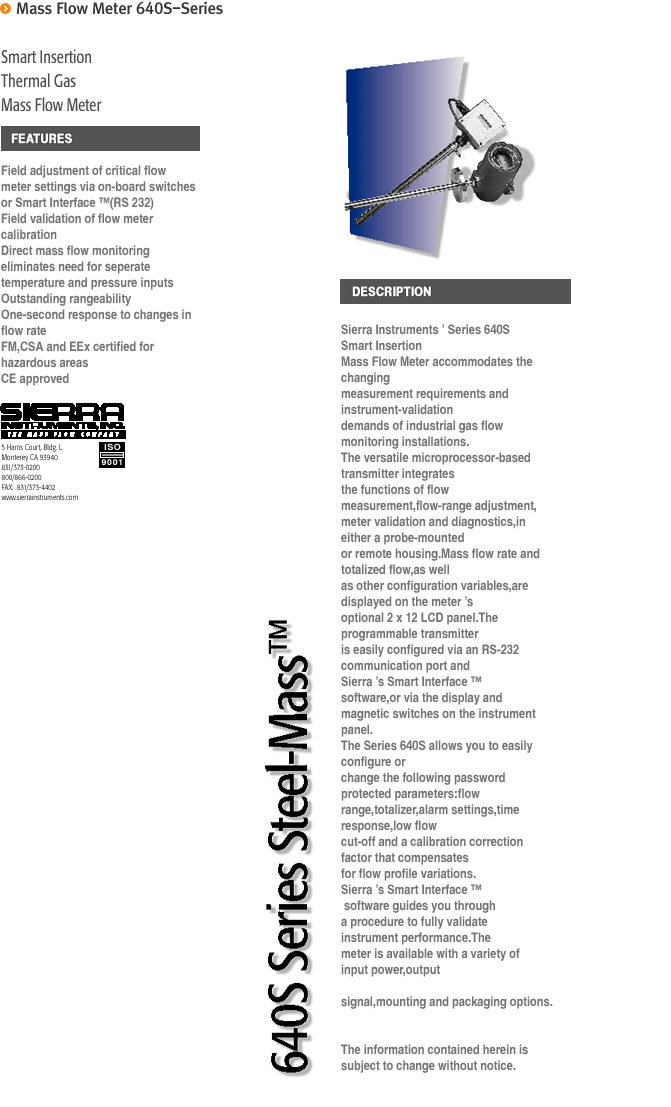

640S	Steel-Mass ™ Industrial Insertion Meter
AGENCY APPROVALS
NAA	Non-Agency Approved Meter
CSA	Explosion Proof for Class I,Division 1,Groups B,C,D
EEx	EEx d IIC T6 …T2 Cenelec
FM	Explosion Proof for Class I,Division 1,Groups B,C,D
PROBE LENGTH
L06	6-inches (15 cm)
L09	9-inches (23 cm)
L13	13-inches (33 cm)
L18	18-inches (46 cm)
L24	24-inches (61 cm)
L36	36-inches (92 cm)
L(in)	Special Length (Length in Inches)
L(in)	-M5 Probe with 1-Inch 150 lb Flange (Length in Inches)
L(in)	-M9 High Pressure Hot Tap with Retractor (Length in Inches)
MOUNTING ACCESSORIES
640S-M0	None
640S-M1	Compression Fitting (3/4-inch tube x 1-inch Male NPT)
640S-M2	Threadolet (3/4-inch Female NPT)Specify pipe O.D.in parentheses
640S-M3	Flat Duct Bracket (3/4-inch tube compression fitting)
640S-M4	Curved Duct Bracket (3/4-inch tube compression fitting)Specifiy duct O.D.in parentheses
640S-M8	Low Pressure Hot Tap.Specifiy duct O.D.in parentheses
640S-M15	Quick Removal Tap.Maximum 40 psig (2.8 barg)
ENCLOSURES
E2	Hazardous-Area Location Enclosure
E3(ft)	Remote Hazardous-Area Location Enclosure (Only with EEx Meters)
E4(ft)	Remote Hazardous-Area Location Enclosure with Junction Box
EN2	NEMA 4X
EN4(ft)	Remote NEMA 4X with Junction Box Specify Cable Length in Parentheses Maximum 200 ft (60 m).Length in Feet Using 5ft.Increments up to 20 ft.,10 ft.Increments up to 200 ft.
INPUT POWER
P2	18 ?30 VDC
P3	100 ?240 VAC (Not Available on EN Enclosures)
OUTPUT SIGNAL
V1	0 ?5 VDC,Linear
V3	0 ?10 VDC,Linear
V4	4 ?20 mA,Linear
DISPLAY
NR	No Readout
DD	Digital Display
GAS CODE
0	Air
1	Argon
2	CO 2
3	Chlorine (Correlation)2
4	Digester
5	Digester (Correlation)
6	Helium
7	Hydrogen
8	CH 4
9	CH 4 (Correlation)
10	Nitrogen 4 Nitrogen 4
11	Oxygen (Correlation)
12	Propane
13	Propane (Correlation)
99	Other
OPTION 1
PT	Pressure Test Certificate
CC	Certificate of Conformance
NC	NACE Certificate
